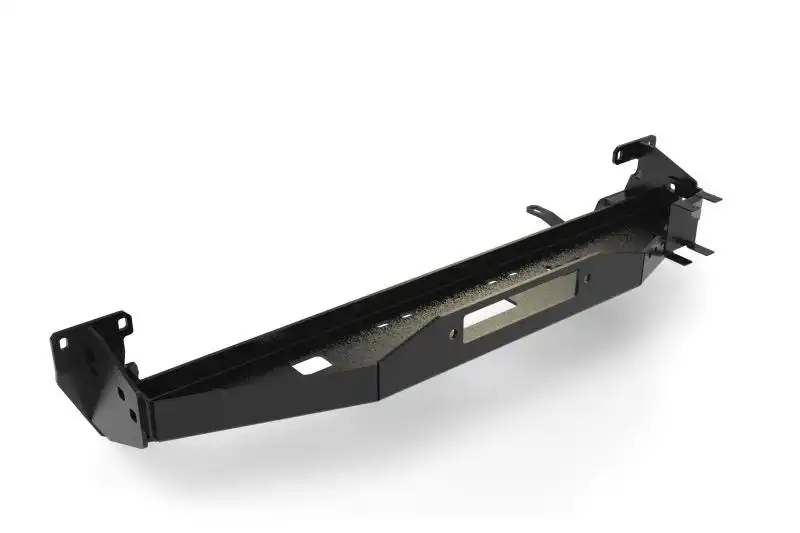

MAN TGE 4x4 4Motion ACC 2021-2024 with automatic transmission winch mounting plate reinforced Heavy Duty HD under the factory bumper. It has additional reinforcements and elements with a thickness of 8 mm. Bolted to the vehicle frame stringers and front suspension beam. Installation no requires drilling or welding. Uses the vehicle's factory bolts and threads. The bumper reinforcement bar remains on the car but needs to be undercut from below depending on the size of the winch used. The ACC radar should be moved to the left on its mounting bracket attached to the product. Made from 6mm and 8 mm thick structural steel plate. Shot-blasted and powder-coated with a two-layer structure. Has a cut-out under the winch drum for easy removal of dirt from the rope. Weight approx. 18.6 kg.

Suitable for cars with ACC Adaptive Cruise Control!
Screws not included
The product has no homologation. For offroad use.

 Reference WmManTGE21.4x4-AT-ACC- HD
Data sheet

Car brand
    MAN
Model
    TGE 4x4
Year of production
    2021 - 2024
Engine version
    2.0d 2.0
